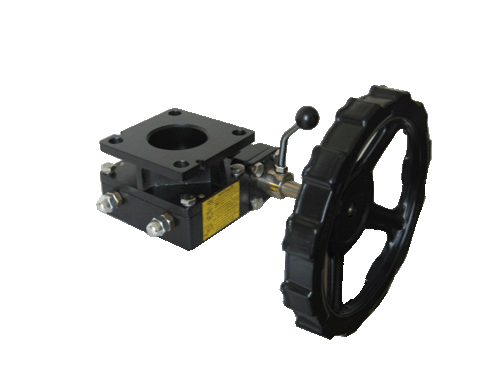

Handwheel Cast Aluminium 22000NM IP68 Valve Gear Operator

Name: Handwheel Cast Aluminium 22000NM IP68 Valve Gear Operator
Brand: Stard-gears
Price: 1 USD

Wholesale Handwheel Cast Aluminium 22000NM IP68 Valve Gear Operator from china suppliers

Brand Name : Stard-gears

Model Number : SLJ

Certification : ISO90001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/P, T/T

Supply Ability : 1000 Pcs-6 weeks

Delivery Time : 20~30 work days

Packaging Details : Cartons or wooden cases

Product Name : Valve Gearbox

Meterial : cast aluminium

Protection Grade : Ingress Protection Rating IP65

Temperature : Applicable To -20 ℃ ~120 ℃

Application : General,Oil,Gas,Water,Valves For Solid/Liquid And Gas

colour : Primer, black paint, customizable

Contact Now

300NM-22000NM Ip65-IP68 Valve Gear Operators As Handwheel Gearbox

SLJ series gear operators

This series consists of eight models with the speed ratio varying from 26:1 to 520:1 and the toque ranging from 300NM to 22000NM. The torque difference between every two adjacent models is small, helping to save a lot of costs for customers when selecting a specific product. The clutch gear operator has a torque ranging from 300NM to 22,000NM and is available in 8 models with the speed ratio varying from 26:1 to 520:1.

This series of products can be die-cast aluminum, WCB, customers can choose according to the requirements, die-cast aluminum cost-effective, WCB strength is better, WCB can be used in nuclear power, chemical and other projects

Main Components List

Part name	Material
Small cap	YL113/ WCB
Housing	YL113/ WCB
Worm gear	QT500-7/ Bronze
Bracket cap	YL113/ WCB

Main Technical Parameter

Model	ratio	Rating input(Nm)	Rating output(Nm)	Efficiency(%)	Hand-wheel
SLJ26	26:1	50	300	23	Φ200
SLJ38	38:1	65	550	23	Φ200
SLJ54	54:1	70	620	25	Φ250
		80	700		Φ300
		75	1000		Φ250
SLJ80	80:1	90	1200	26	Φ300
SLJ80	80:1	95	2000	26	Φ350
SLJ78	78:1	160	3200	26	Φ600
SLJ270	270:1	90	6000	25	Φ500
SLJ320	320:1	100	8000	25	Φ500
SLJ520	520:1	160	22000	25	Φ700

Product Features

Aluminum die-cast alloy or cast steel casing
Full stamped hand-wheel (200-350)
IP65 grade protection
Nickel-plated input shaft, with more resistance to corrosion
Ductile iron worm gear
NBR sealing material
Suitable for -20℃ ~ 120℃ working conditions

Customization

Stainless steel or LCB casing
IP68 grade protection
Aluminum-bronze worm gear
Stainless steel input shaft
For high temperature up to 320℃
For low temperature down to -40℃
For marine use
